Display & Control
Technology, systems, plant, structure, offer, possibilities
The best of 2 worlds, an intelligent control that is adjusted and configured for your system in connection with a simple and well thought-out monitoring and control function by the user via a display, that's how it should be!
The display & the controls
From the small system, e.g. cabin sauna, to entire wellness and sauna landscapes or other large systems, it doesn't work without sophisticated control and operation! When planning, installing and programming the controls and systems, it is essential to get an idea on site of what needs to be controlled, is it pure load distribution, fan control, lighting systems, saunas or other wellness systems or completely different systems? Depending on the requirements and control, a wide variety of systems are used. For example, the controls include an operating element in the form of a display with a cloth function, which in turn operates smaller control units via a bus system or requests sensor data and depending on the
Configuration lowers/raises voltages in order to then transmit certain switching states to the smaller control units, e.g. (the control electronics in the low-voltage range up to 60V), in order to then switch the actual load via large load contactors or minimize the starting currents of several systems in order to minimize peak loads. In our sauna systems, the controls play a very special role, because they are specifically tailored to the sauna system and enable the user, for example, to monitor or control the temperatures, heating periods, switching/operating times, lights or fan systems and all this very easily via the touch panel. The clear structure and the menu navigation of the display controls can be individually adapted to the system.
Pre-programmed processes for the various systems are the absolute standard for us. The combination of the control unit, the brain of the system, the display for the condition, the numerous sensors and switching states that are recorded by the control electronics and then switch the large loads is a self-contained, highly complex but necessary system to modern wellness -/ & to make sauna facilities possible in the first place. Thanks to seamless communication and new technologies, remote access to controls is also possible. The analog switching signals with the status "on/off", level of voltage or pulses etc. are transmitted to the central control unit, which then converts the signals into digital values and then makes the decisions that you then make about a LAN/WAN/ WLAN interface and an app control on the mobile phone, for example, the PC and can also be remotely controlled. This is particularly useful when there is a malfunction and the technician can see from afar where there is a hack and can perhaps tell you that the temperature sensor, for example, is delivering incorrect values. We are happy to support you with sophisticated system control technology and the associated management and control of your electrical system via an easy-to-use and intuitive display.

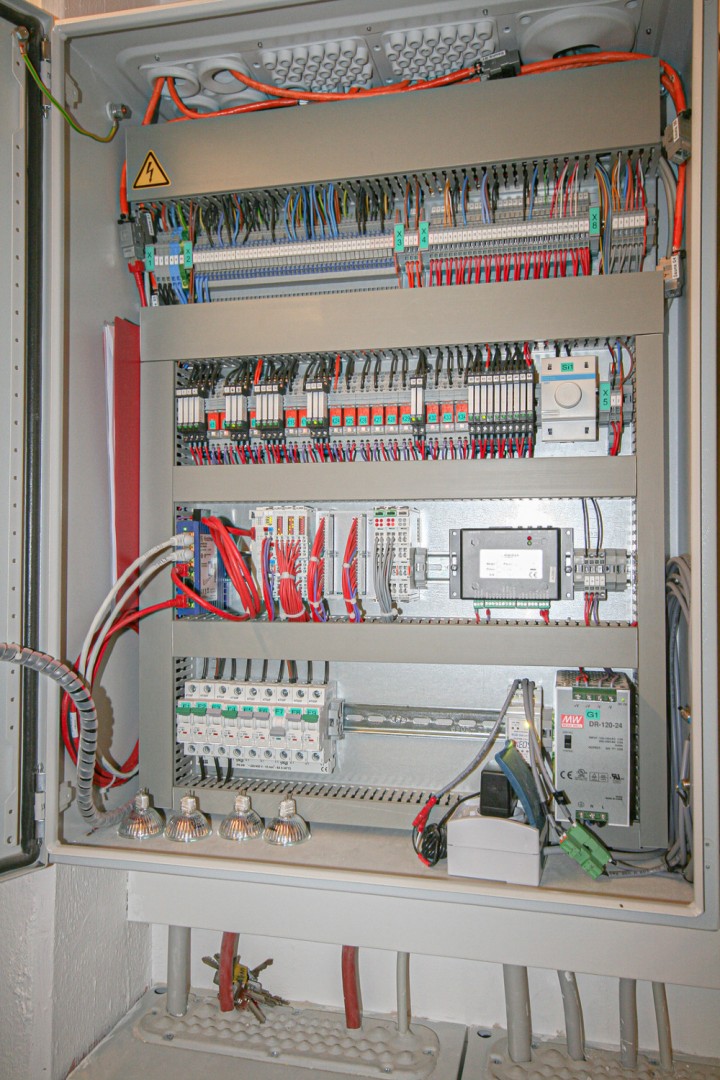

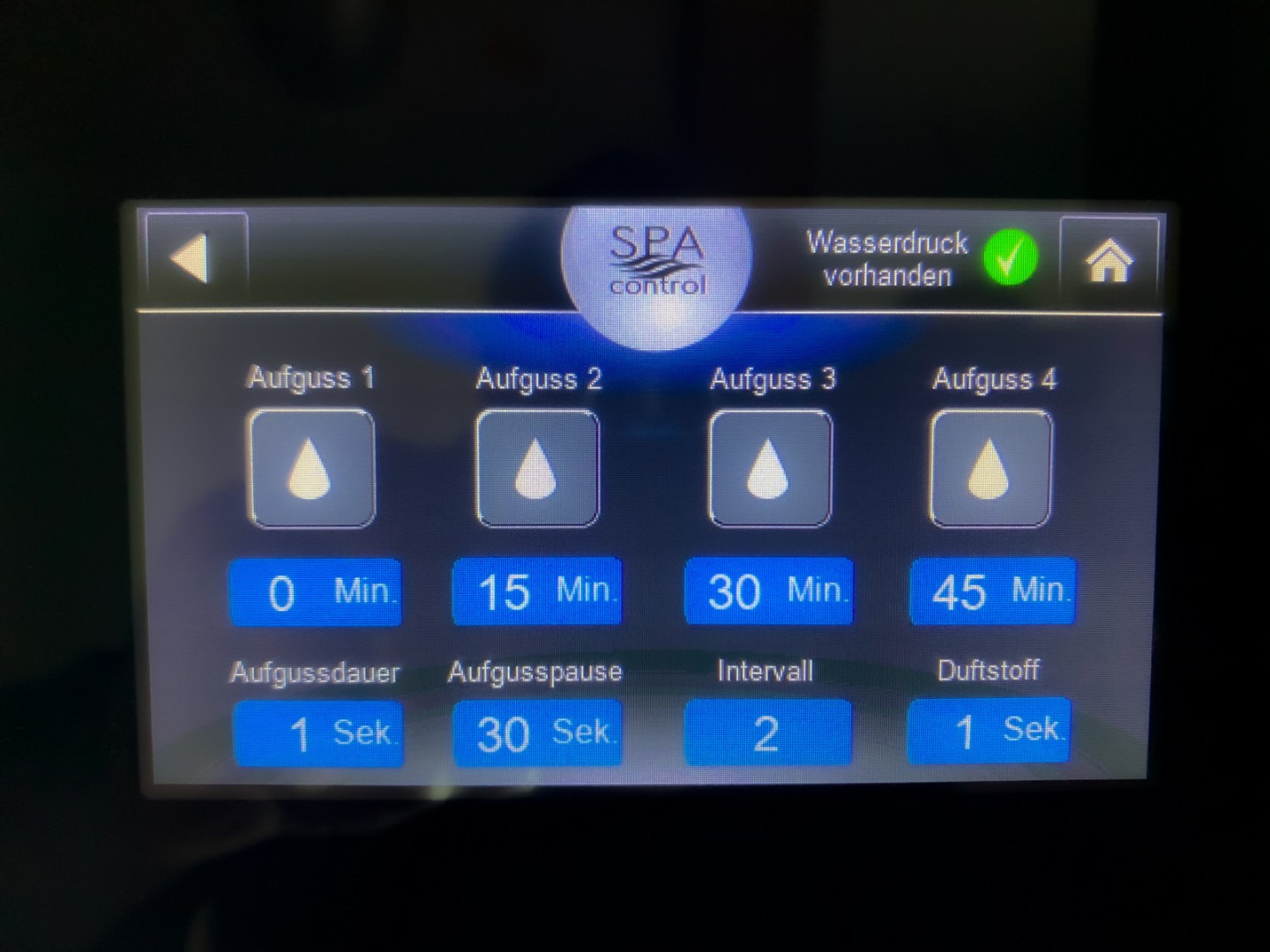

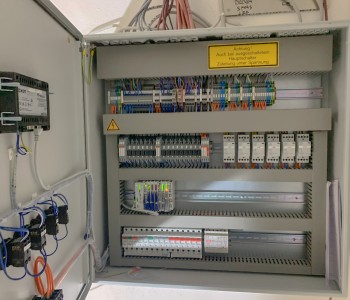

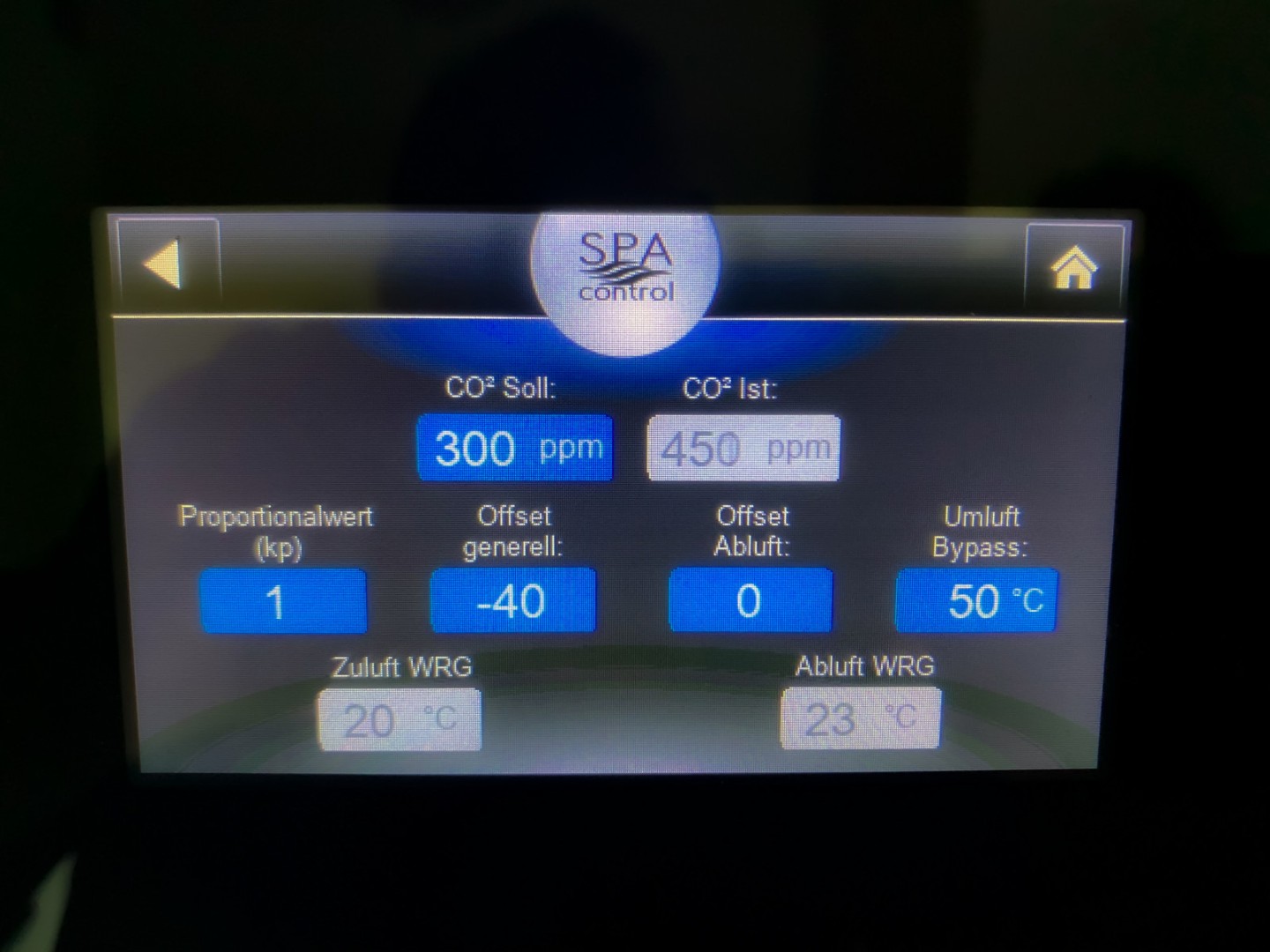

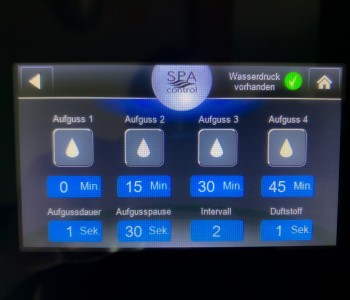

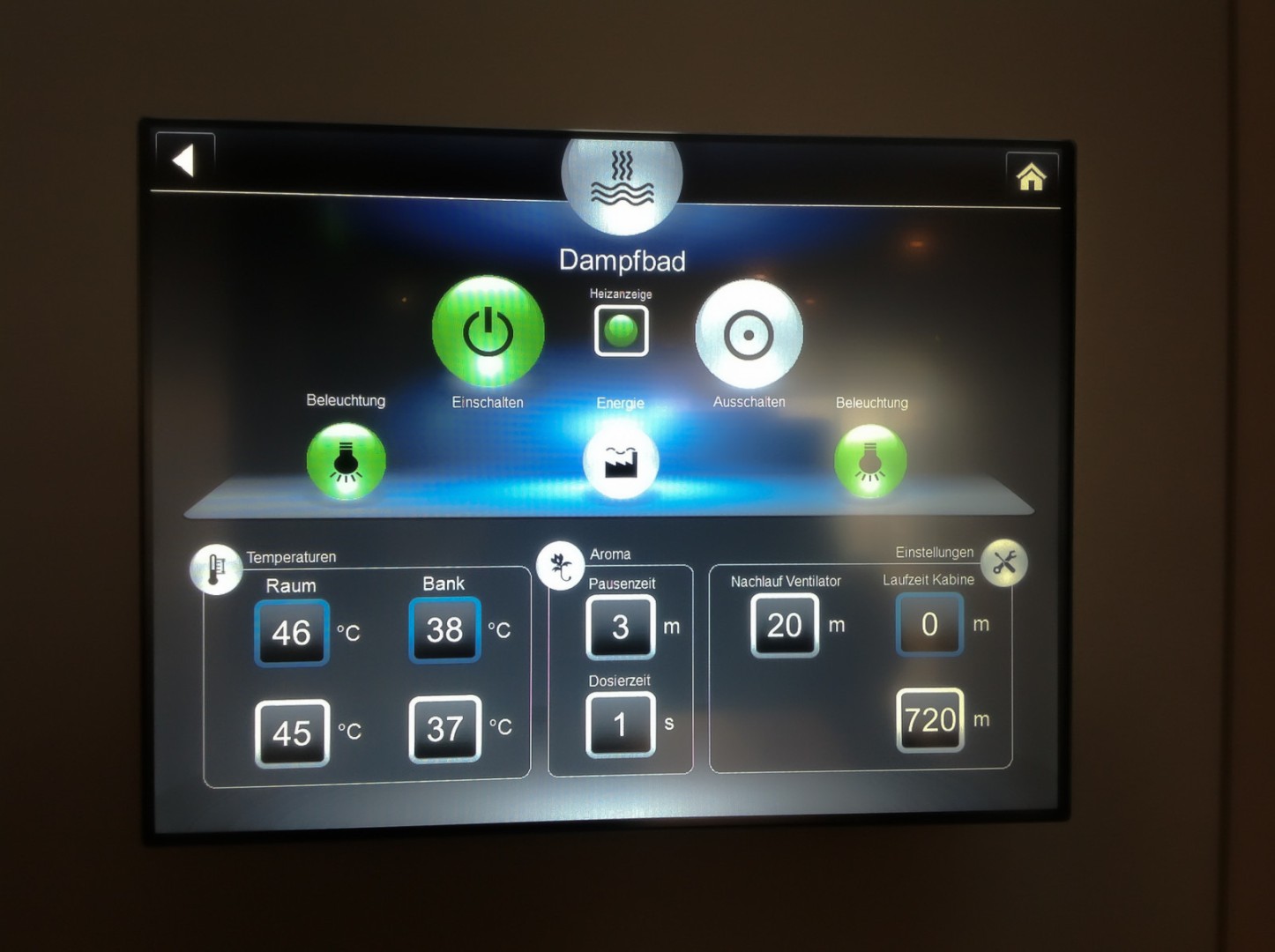

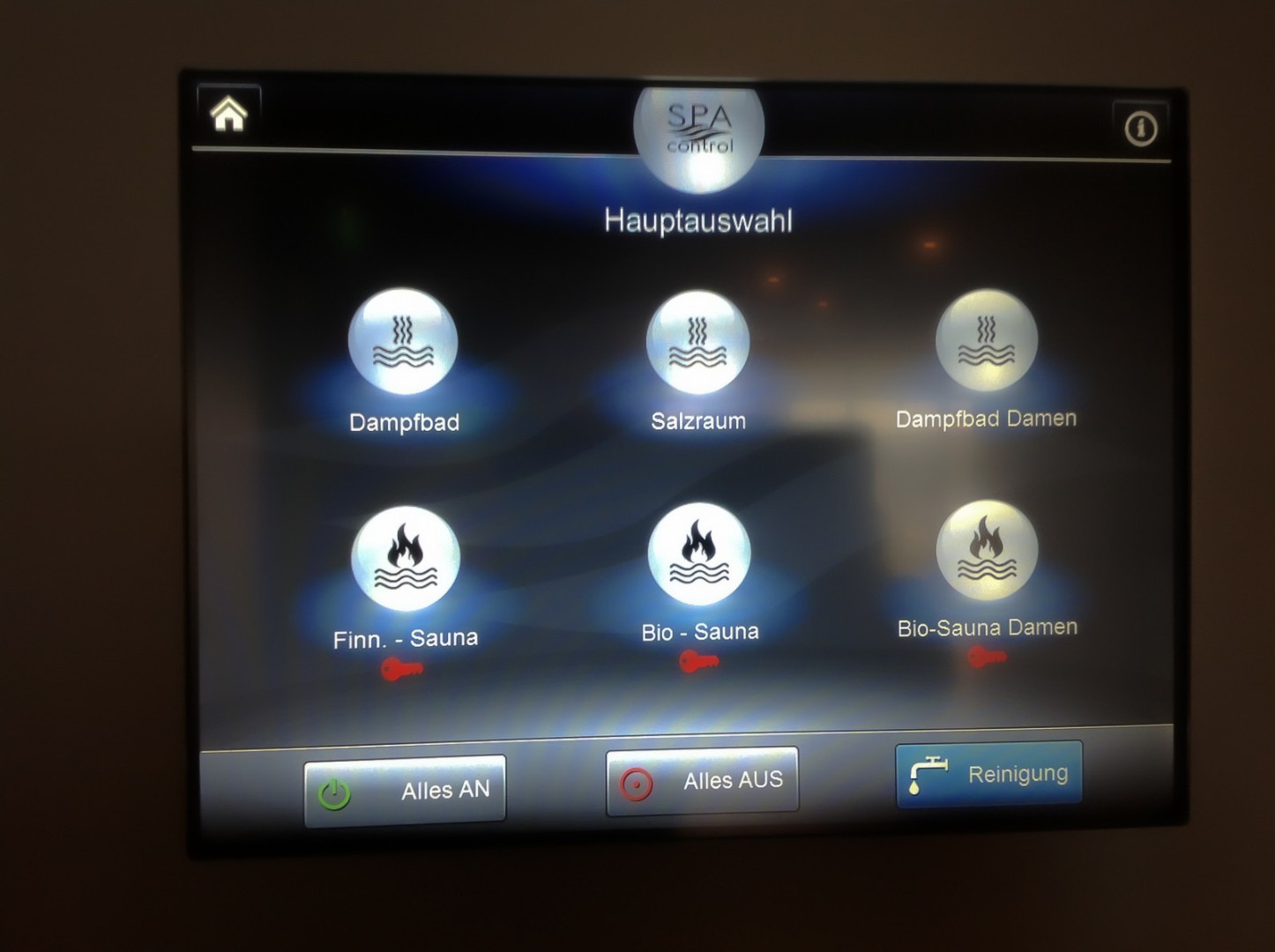

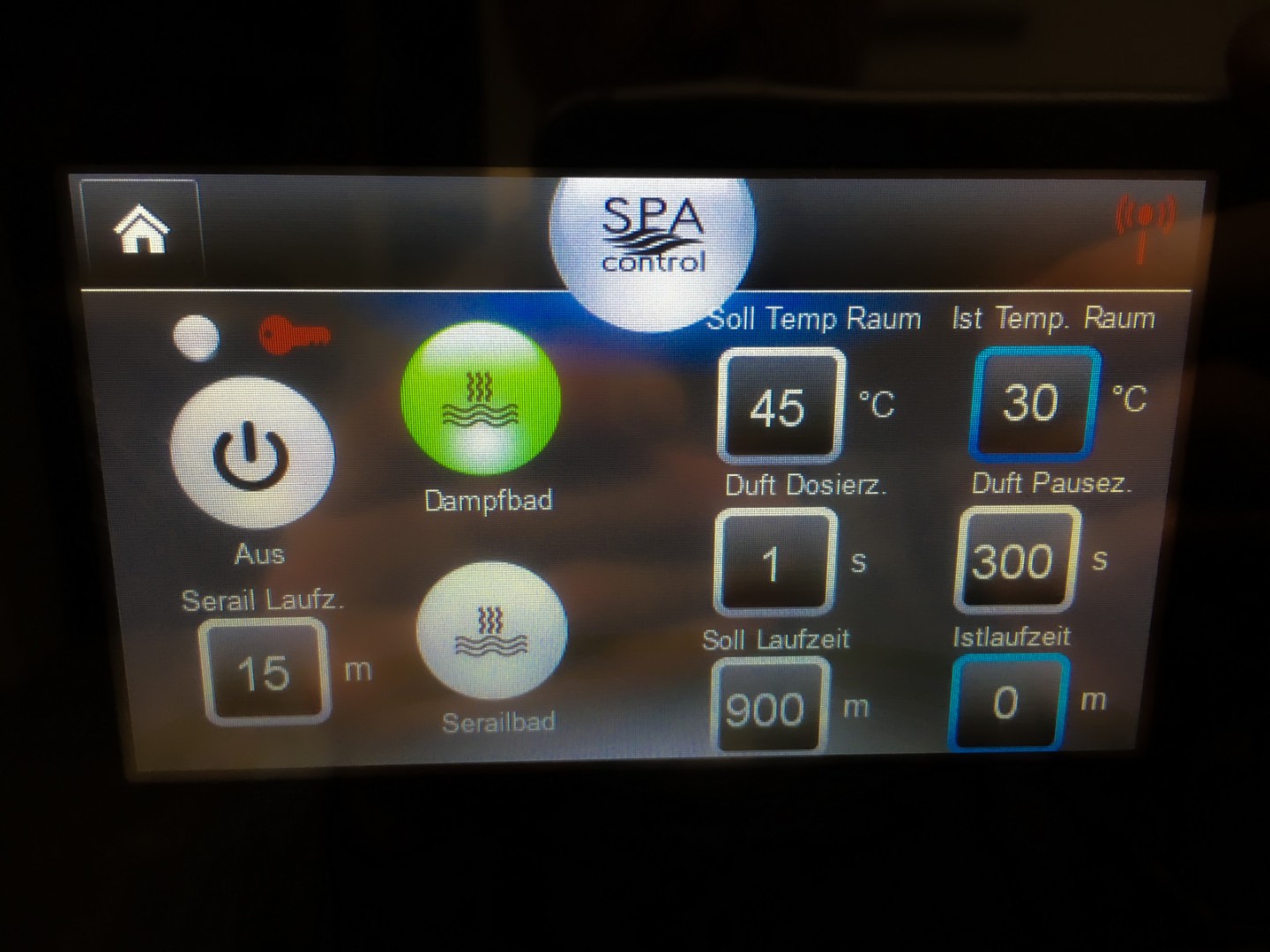

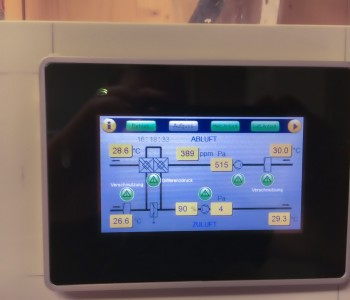

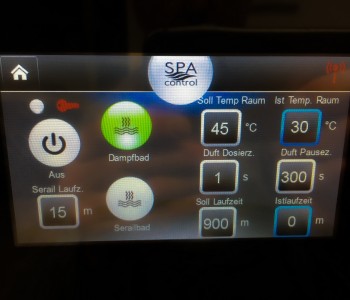

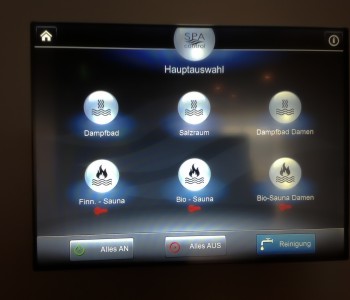

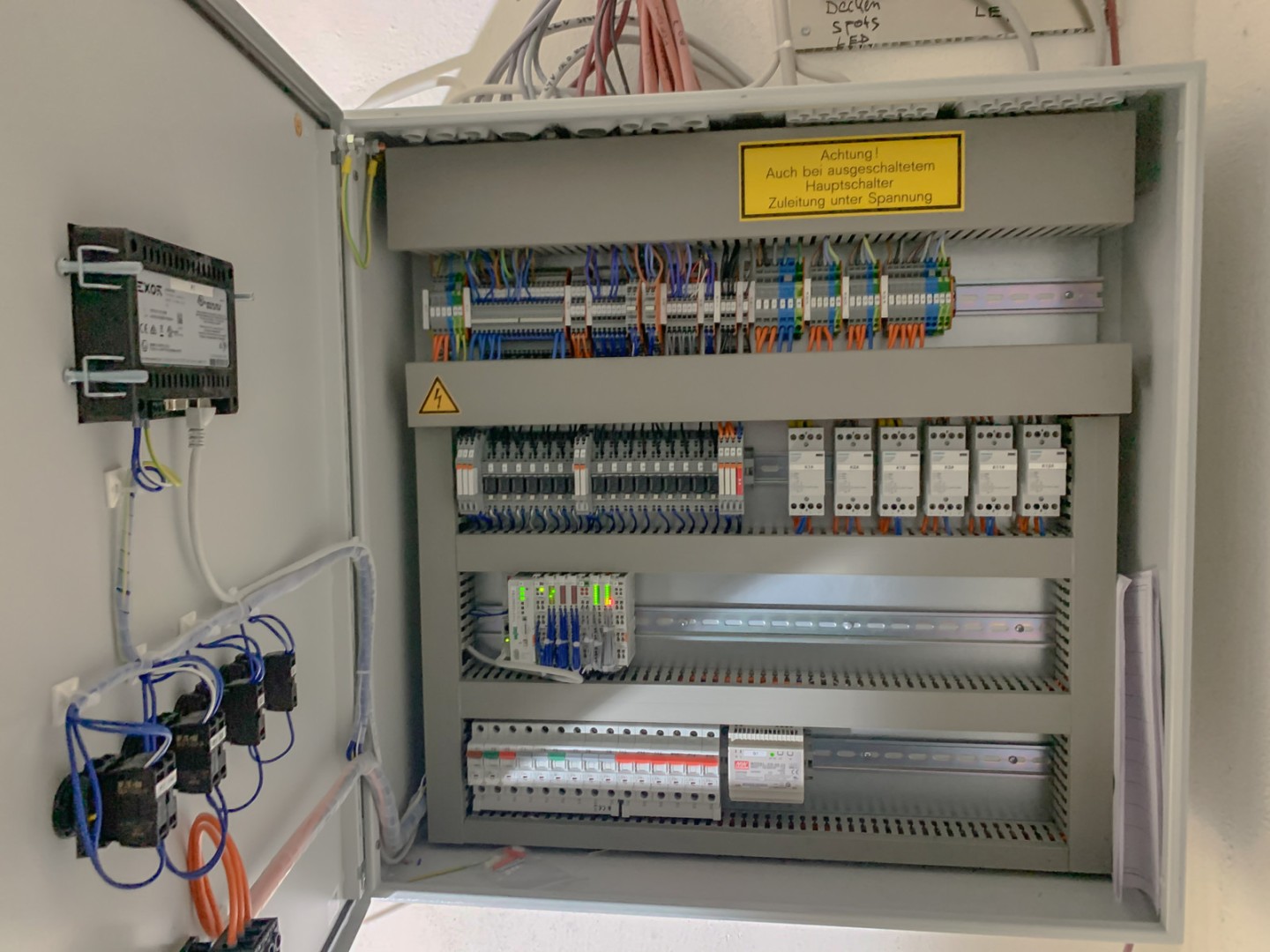

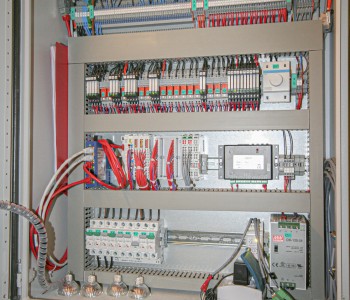

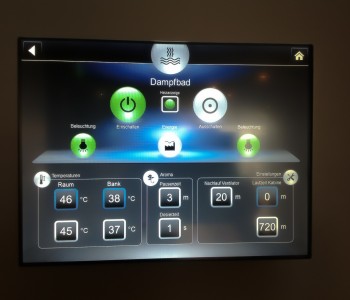

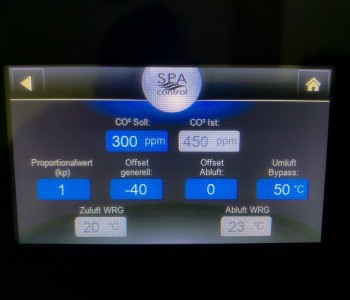

Display & controls examples
click on the pictures to enlarge....
Consulting & conception
Project-related & on site
Contact person: Georg Zelger
Phone: +49 (0) 87 41 / 92 66 36
We advise you on the possible configurations and systems in the control technology, as well as the display control and remote maintenance options, especially for your desired system or system. Project.
Support & implementation
With the start of the implementation of your system, we monitor every construction phase and programming of your control, up to acceptance, tests and later commissioning.
Maintenance & Care
Even after the implementation and installation of your system, we remain with you, e.g. for extensions, maintenance or questions about the controls, etc.
Good cooperation & support
Planning a project hand in hand right from the start, building it up and supporting it over the years is not only important today, but also in the future!
